Underground Greenhouses

Earth Sheltered Greenhouses use the fact that the earth is a stable temperature all year round to greatly extend the growing season. These were known to native people as walipini or “place of warmth”

http://www.inspirationgreen.com/pit-greenhouses.html

There are so many different types of greenhouses and clever adaptations that books upon books have been written on the subject. Has anyone seen really clever designs in action?

pitgreenhouse

Advertisements
Categories: Architecture, Energy Efficiency, Gardening | Tags: , , , , , | 1 Comment

Site Solar Shading Survey Apps

The first thing you need to do before building any sort of solar-powered project is to figure out how much sun the site receives. Trees, mountains and houses can all block solar energy from reaching whatever you have collecting it. In the olden days you would go out to the site armed with a compass, protractor, cardboard, string and a washer and plot out the obstructions on paper. I’ll let Builditsolar.com describe how to do that in detail: http://www.builditsolar.com/SiteSurvey/site_survey.htm

Here’s what an old-fashioned solar survey looks like:

survey

Thanks to google sky map, everyone now knows that smartphones and tablets have all the sensors that one would need to make one of these charts digitally, plus a camera. The burning question is which app works the best and how do you make a chart with this technology? We pitted a few against each other using the same android smart phone hardware and here are the results. There is also a guide for creating this chart using some of the apps mentioned below.

1. Solar Shading: For the purpose of making a site solar survey chart, Solar Shading is by far the most capable app for android, which makes sense because it is the only one specifically designed to make this chart. The interface is a bit harder to get used to than the other apps, but it is by far the most powerful. You trace the obstructions to the sun either using the crosshairs with the camera or looking down the edge of the phone/tablet. Once you’ve completed tracing the horizon for a complete circle, the app generates the solar chart as well as two graphs showing the solar power generated and the penalty that the obstructions are causing during each month of the year. This app is easily the fastest way to accomplish the task and provides great looking reports, so it can be done at several locations on a site to find the optimal location on a site for a solar collector or a passive solar house. The only downside is the $16 price tag.

2014-01-24-13-49-562014-01-24-13-47-09

2014-01-24-13-47-51 2014-01-24-13-48-33

 2. Sun Surveyor: This is an “augmented reality” application that displays sun paths and/or moon paths on the camera preview. This is the smoothest, most polished, and most feature rich of this type of app that was tested. The 3D compass, compass calibrator, and map view are nice additions to your smartphone toolkit. The augmented reality view shows any sun or moon path that you would like to display, as well as degree grid lines, which are very helpful in building a solar chart back at a computer using the images captured with this application. These images can then be taken back to a computer and obstructions plotted onto a chart if needed. This is a nice companion to the Solar Shading app to have pictures for later reference that are geographically referenced. This app carries a $6.49 price tag.

2014-01-24-13-24-49  2014-01-24-13-23-53  2014-01-24-13-27-40

3. SunPlan: A little Less polished than Sun Surveyor, the augmented reality view works almost identical to it. Sunplan doesn’t have the 3D compass, Map view or moon information, but it has a shadow compass. At $3.99, it’s a little easier on the wallet if you don’t need the vast array of sun and moon data.

IMG_20140124_131137  2014-01-24-13-08-00

4. Helioserver: Works similar to the solar shading app, but the interface is confusing and not very polished. It probably does a lot of heavy lifting in the background, but only gives you an output of what direction to point solar panels; I wasn’t able to accurately come up with reference points from the output to plot the data onto a chart. I couldn’t figure it out, not to say it can’t be done.If it works for you, the $1.33 price tag is certainly the cheapest.

2014-01-24-13-18-28 landscape

Conclusion: After actually doing a few surveys with all of the software, I personally choose to use the Solar Shading app to do the heavy lifting. Its professional looking output can be imported directly into Photoshop and excel. It collects real data in a couple of minutes so that several locations can be investigated to find the optimal solar site location in a short amount of time. I also use Sun Surveyor and SunPlan to get a good panorama of the site for reference further down in design. They are both very similar, so use Google Play’s 15 minute refund policy to try them both out before you decide which one you prefer.

Categories: Design, Energy Efficiency, Technology | Tags: , , , , | Leave a comment

Solar Panel Orientation

The more research you do into renewable resources, the more you realize that matching demand for power to the renewable supply is the trickiest part. According to this study, for people that are away at work in the middle of the day, it makes more sense to point solar panels south-west instead of directly south. Makes sense right? Well, yes and no. If you aren’t attached to the grid, or your power company doesn’t allow net-metering and you work all day then yes, this makes perfect sense, why not make the power when you’re using it. If you have net-metering from your power company, why not produce the most power and use the grid as your battery; then due south is still the way to go.

solar-panels-installation-roof-photo-0002.jpg.492x0_q85_crop-smart

Categories: Energy Efficiency, Technology | Tags: , , , , , | Leave a comment

Design Tool: 2030 Palette

Architecture 2030 is a team of non-profit crusaders that want to radically transform the way that structures are built and how they interact with the environment. The 2030 Challenge is much like the EPA’s very successful CFC reduction program that let the Ozone Hole repair itself. Instead of CFCs, this challenge is to phase out the use of fossil fuels in buildings by the year 2030.

Not to leave everyone hanging wondering how to accomplish this goal; they are developing a great free resource of information on how to build carbon neutral and resilient structures and plan resilient communities which is called the 2030 Palette. The website is complete with pictures, descriptions and rules of thumb for many concepts vital to low impact built environments. Check out this fantastic tool for Architects, Engineers, Owners and people who want to learn more about how our buildings interact with the environment.

sol_y_sombra_2

Categories: Architecture, Preservation, Resilience | Tags: , , , , , , , , , , | Leave a comment

The Double Envelope Passive Solar Home

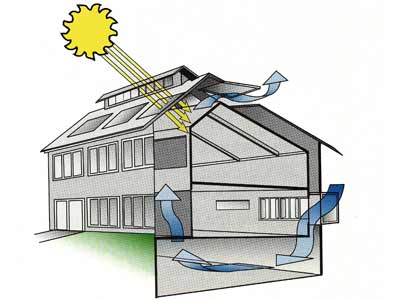

The double envelope passive solar house concept is explained well by Enertia here. The double envelope can obviously be expensive and I believe that is why it has a hard time being adopted as a mainstream building technique, but it can drastically cut energy bills if done correctly. Using the sun as a heat pump and fan while taking advantage of massive walls and southern windows make for a very efficient home indeed.

enertia-building-system-4

Categories: Architecture, Technology | Tags: , , , , , | Leave a comment
